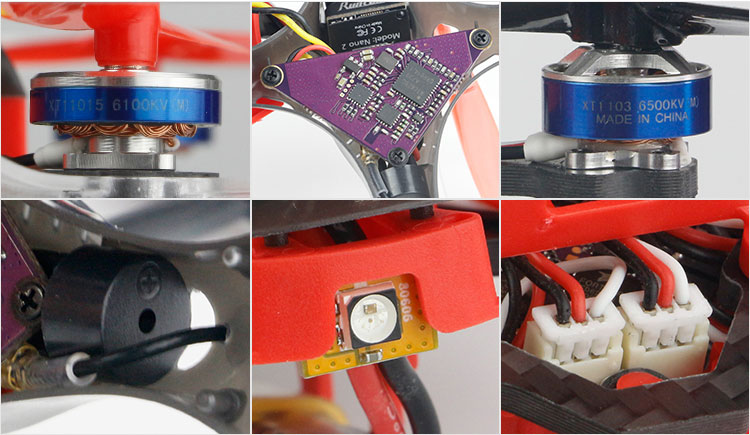

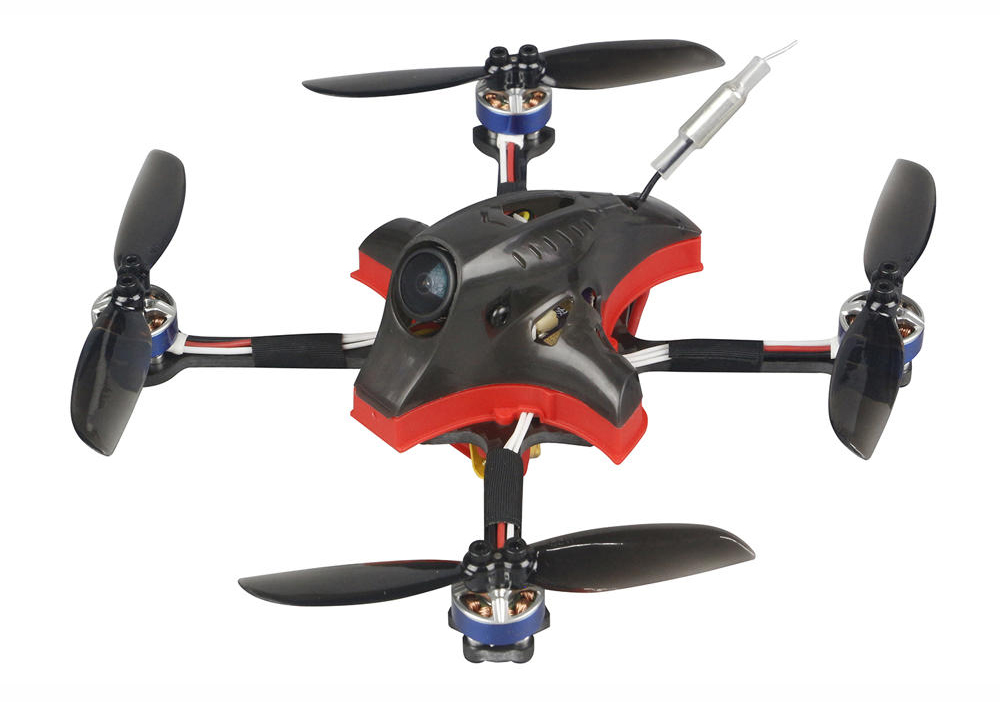

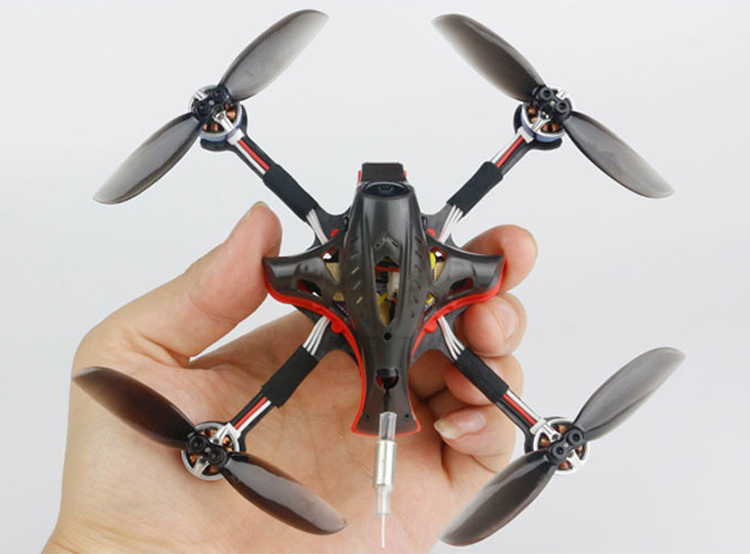

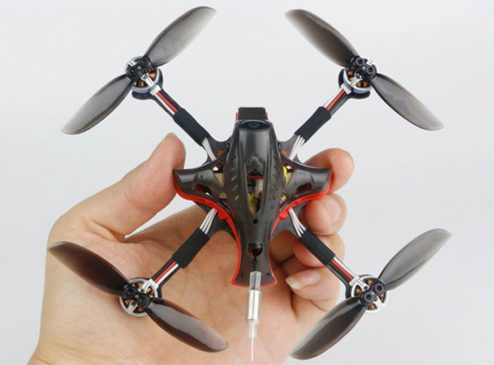

Ce nano racer fait partie des appareils à l’équipement spartiate pour peser le moins possible. Il s’appuie sur une structure en carbone de 12,2 cm de diagonale de moteur à moteur. Au cœur du dispositif, on trouve un contrôleur de vol basé sur un processeur F4, flashé avec Betaflight, avec un OSD actif, couplé à un ESC 4 en 1 de 12A. Les moteurs sont des brushless 1103 à 6500KV, pour un axe de 1,5 mm, avec des hélices bipales de 7,5 cm de diamètre.
La partie vidéo ?

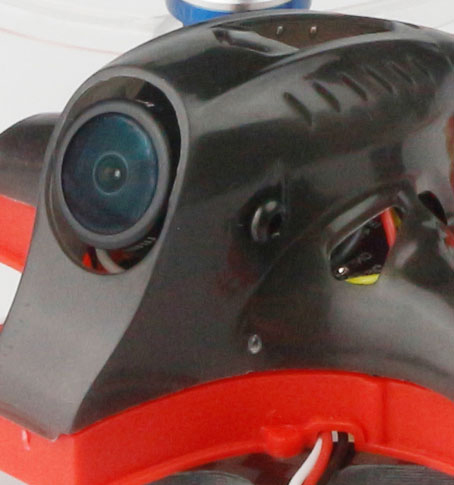

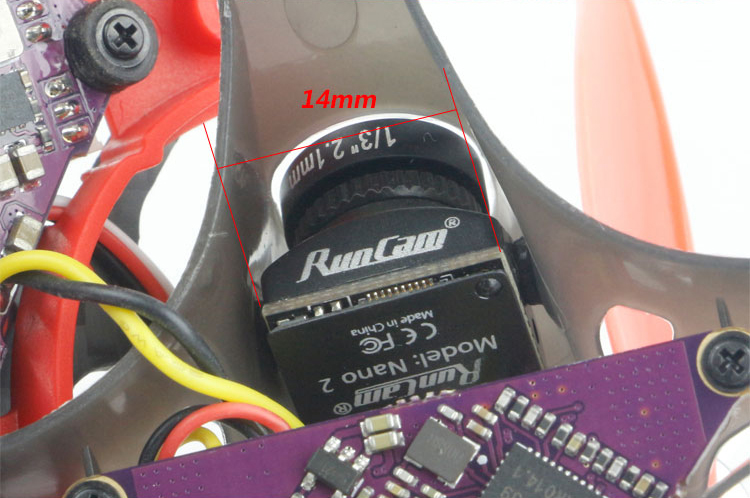

La caméra est une RunCam Nano2 700TVL qui peut être inclinée entre 18 et 40°. Elle est associée à un émetteur vidéo 5,8 GHz de 48 canaux capable d’émettre à 0 mW (pitmode), 25 mW (le maximum autorisé en France), 100 mW ou 200 mW, compatible avec le protocole IRC Tramp pour piloter les réglages depuis la radiocommande, et équipé d’une antenne dipôle. LDARC ajoute une LED et buzzer, pratique pour retrouver l’appareil dans de hautes herbes.
La partie radio ?

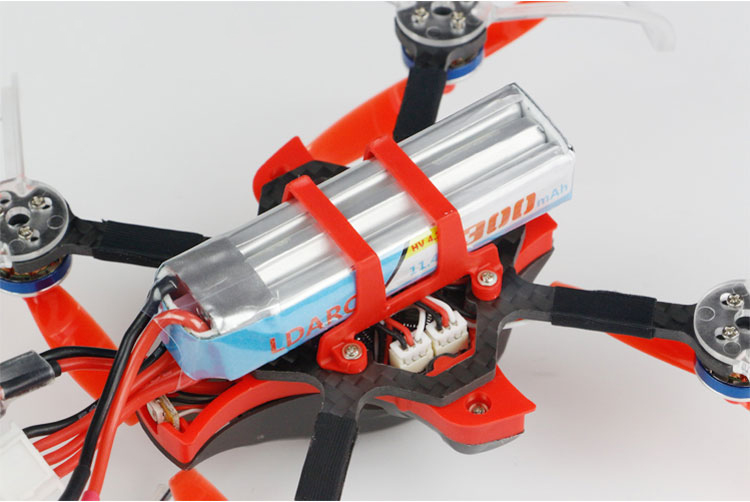

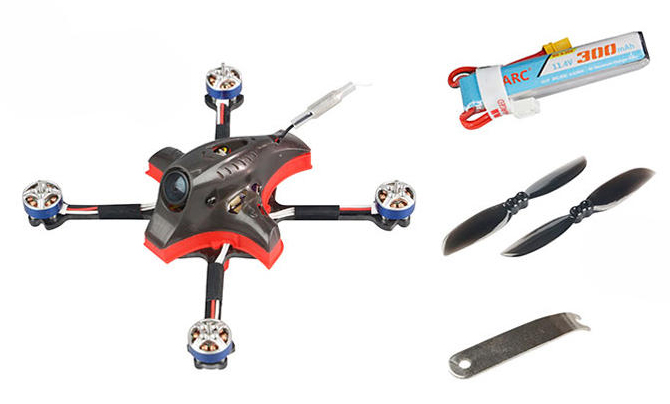

Le compartiment en plastique sous l’appareil est prévu pour accueillir une batterie 3S de 300 mAh avec un connecteur XT30. Le AK123 est livré dans une boite en plastique transparent. Il est proposé en version sans récepteur radio, ou avec un récepteur AC2000 compatible Futaba, FrSky D16 EU-LBT et Non-EU. Le poids ? 55 grammes sans batterie et récepteur, 81 grammes en ordre de vol… Le prix ? Il sera proposé à partir de 109 € chez Banggood (sans le port, sans les taxes).
